Summary

We will walk through the supported comms protocols and the wiring diagram for each on the IG21.

IG21 Supported Communication Protocols

This section provides an overview on how to physically connect with various third party devices. The IG21 can communicate with third party devices from other manufacturers via Modbus RTU, Modbus TCP, Modbus ASCII, Ethernet IP, MQTT, and OPC-UA. This enables the IG and Samsara cloud platform to be able to read and write data from other PLCs, machines, and sensors related to controlling a process.

Further information on Cloud configuration and setting up third party devices within the Samsara Cloud is covered in a future Chapter: Set up Third Party Devices

Supported Serial Communication Protocols

IG21 supports multiple protocols via 3-wire serial communication via its built-in serial adapter, with the choice of RS232 or RS485.

RS232 Wiring Diagram

RS232 supports connection to only a single device, so the wiring is relatively simple.

RS232 is designed for connecting 2 devices over short cable runs. No termination resistors or biasing resistors are required. For connecting to multiple devices or over long cable runs, RS485 should be utilized.

RS485 Wiring Diagram

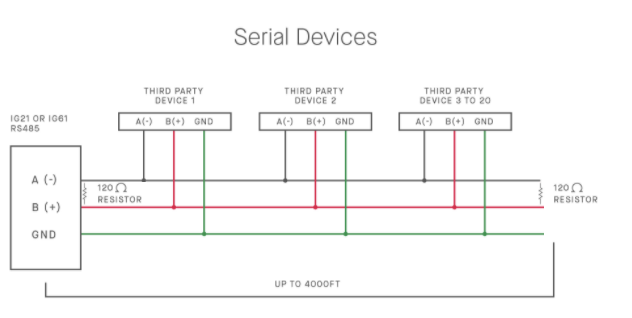

The diagram below: shows how to properly wire the IG21 to a third party device over RS485 connection. Termination resistors may not be required for very short runs, but are generally recommended for improved reliability. Pull-up and pull-down resistors may also be needed in environments with significant RF noise. Contact Samsara Support or a Sales Engineer for more information.


Supported serial protocols: Modbus RTU, Modbus ASCII, Interactive Serial, ROC Protocol.

Modbus RTU / Modbus ASCII

The IG21 can be be used as a Modbus client to read data from Modbus servers.

At this time IG21 CANNOT act as a Modbus server.

Modbus RTU and ASCII protocols are supported over RS232 and RS485. Configuration options must be set correctly based on the configuration of the connected Modbus server(s).

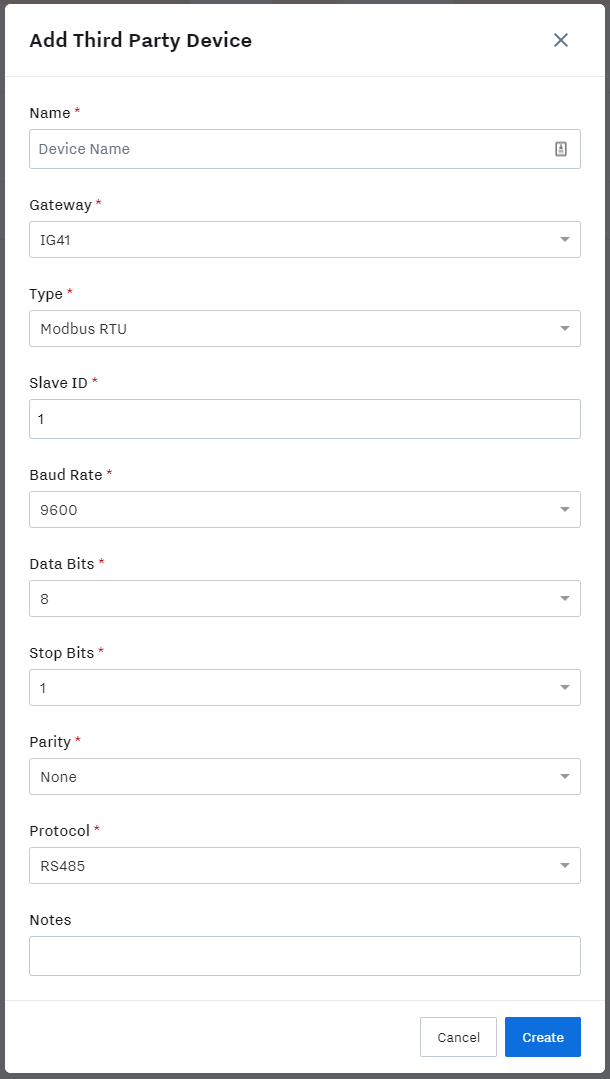

When add a new 3rd Party Device using Modbus RTU or ASCII all configuration fields are required, with the exception of the Notes free text field. For maximum reliability and compatibility we recommend using a Baud Rate of 9600, 8 Data Bits, No parity and 1 Stop Bit.

Supported function codes:

Function Code

Description

Function Code 1

Read Coils

Function Code 2

Read Discrete Inputs

Function Code 3

Read Holding Registers

Function Code 4

Read Input Registers

Function Code 5

Write Single Coil

Function Code 6

Write Single Register

Function Code 16

Write Multiple Registers

Modbus TCP / Modbus RTU over TCP

The IG21 can also be used as a Modbus client to read data from Modbus servers connected via Ethernet networks.

At this time IG21 CANNOT act as a Modbus server.

Modbus TCP and Modbus RTU over TCP protocols are supported over ethernet connected networks. Configuration options must be set correctly based on the configuration of the connected Modbus server(s).

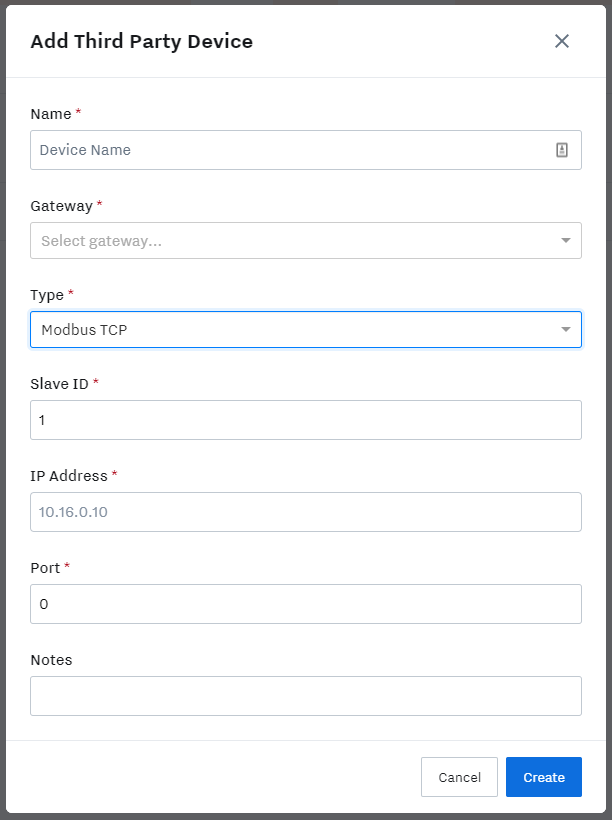

When add a new 3rd Party Device using Modbus TCP or RTU over TCP all configuration fields are required, with the exception of the Notes free text field. The default port for most Modbus TCP servers is port 502. Some Modbus TCP servers do not require a Slave ID to be configured, in which case it can be left as ‘1' or '255’.

NOTE: The IG21 must have a valid IP address configured on at least one of its interfaces, and must be able to communicate with the IP address of the Modbus server that is being configured. You can use the ‘Ping’ command to test connectivity - see this article for more information: Troubleshoot Third Party Devices

ROC Protocol

The IG21 supports a subset of the Emerson ROC Protocol in order to communicate with the Emerson Floboss range of flow computers. The IG21 is able to read and write TLPs from a connected Floboss and to read and set the current time of the unit. See Emerson documentation for more information on the ROC protocol.

The IG21 supports the ROC protocol over TCP connections as well as RS232 and RS485 serial connections.

For maximum throughput and reliability we recommend using the ROC protocol over TCP via the IG21’s ethernet port.

ROC Serial Wiring Instructions

  1. If you are using RS232, connect to the IG21 to an RS232 capable port on the controller

    1. For Floboss devices, this may be the LOI port

  2. If you are using RS485, connect the IG21 to an RS485 capable port on the controller

  3. If you are unsure about port capabilities, please refer to the device-specific manual

  4. ROC communication ports must be configured correctly via the ROCLink800 software package, available from Emerson

Configuring the 3rd Party Device

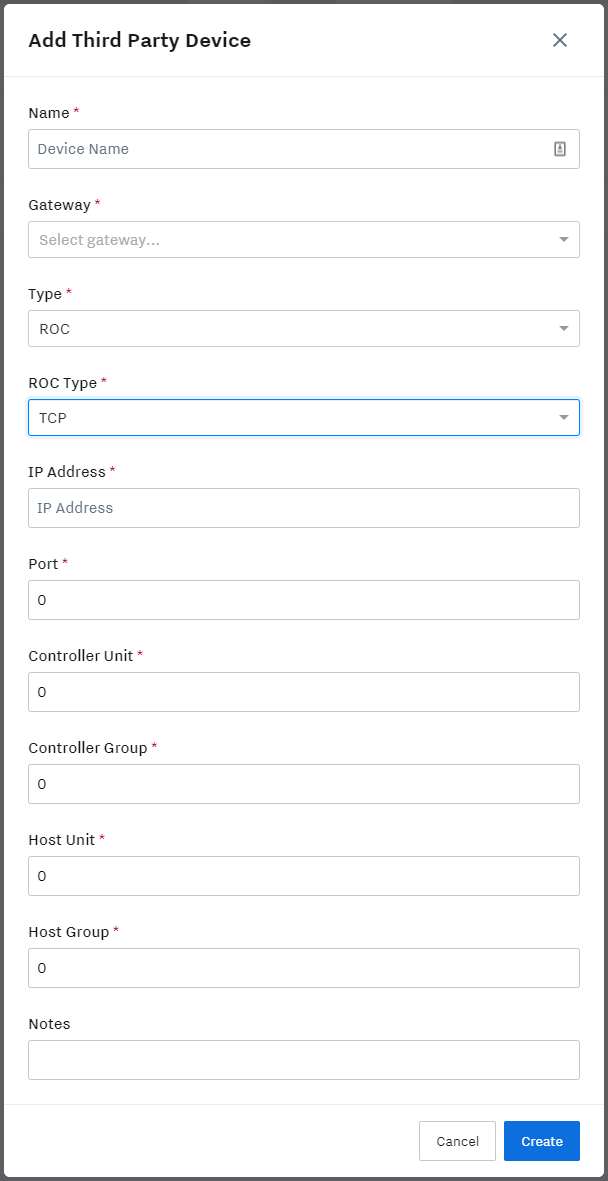

When adding a ROC protocol 3rd Party Device, you must specify the connected ROC device’s Controller Unit and Group IDs, as well as specifying a Host Unit and Group ID for the IG21 to use. If the connected ROC device’s ID and Group are not known it is possible to use ID 240 and Group 240 for testing purposes - however all connected ROC devices will respond, which may not be desirable.

For TCP connected devices, the ROC device’s IP address and port number must be supplied. The default port number is 4000.

For serial connected devices, the serial protocol type must be supplied (RS232 or RS485) as well as baud rate, data and stop bits and parity type.

Currently Supported ROC OpCodes

Right now Samsara ROC protocol support includes:

OpCode

Description

OpCode 180

Read one or multiple parameters (TLPs) in a single request

OpCode 181

Write one or multiple parameters (TLPs) in a single request

OpCode 7

Read ROC device real-time clock (returns Unix epoch time in milliseconds)

OpCode 8

Set ROC device real-time clock (takes Unix epoch time in milliseconds)

EtherNet/IP

IG21 supports a subset of the EtherNet/IP standard for connecting to a range of Allen-Bradley PLC devices. Generic EtherNet/IP is not available at this time. IG21 is able to read and write specified Tags from Allen-Bradley devices.

The current list of supported A-B PLC families:

  • SLC500

  • MicroLogix 1100

  • CompactLogix

  • ControlLogix

  • GuardLogix

  • MicroLogix

  • Micro800

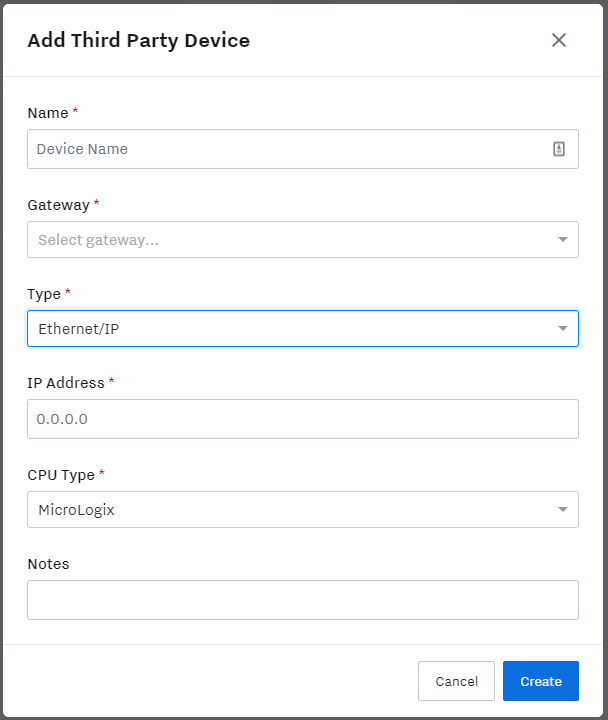

The IP address of the connected device, along with the A-B PLC type must be provided when configuring a new EtherNet/IP 3rd Party Device.

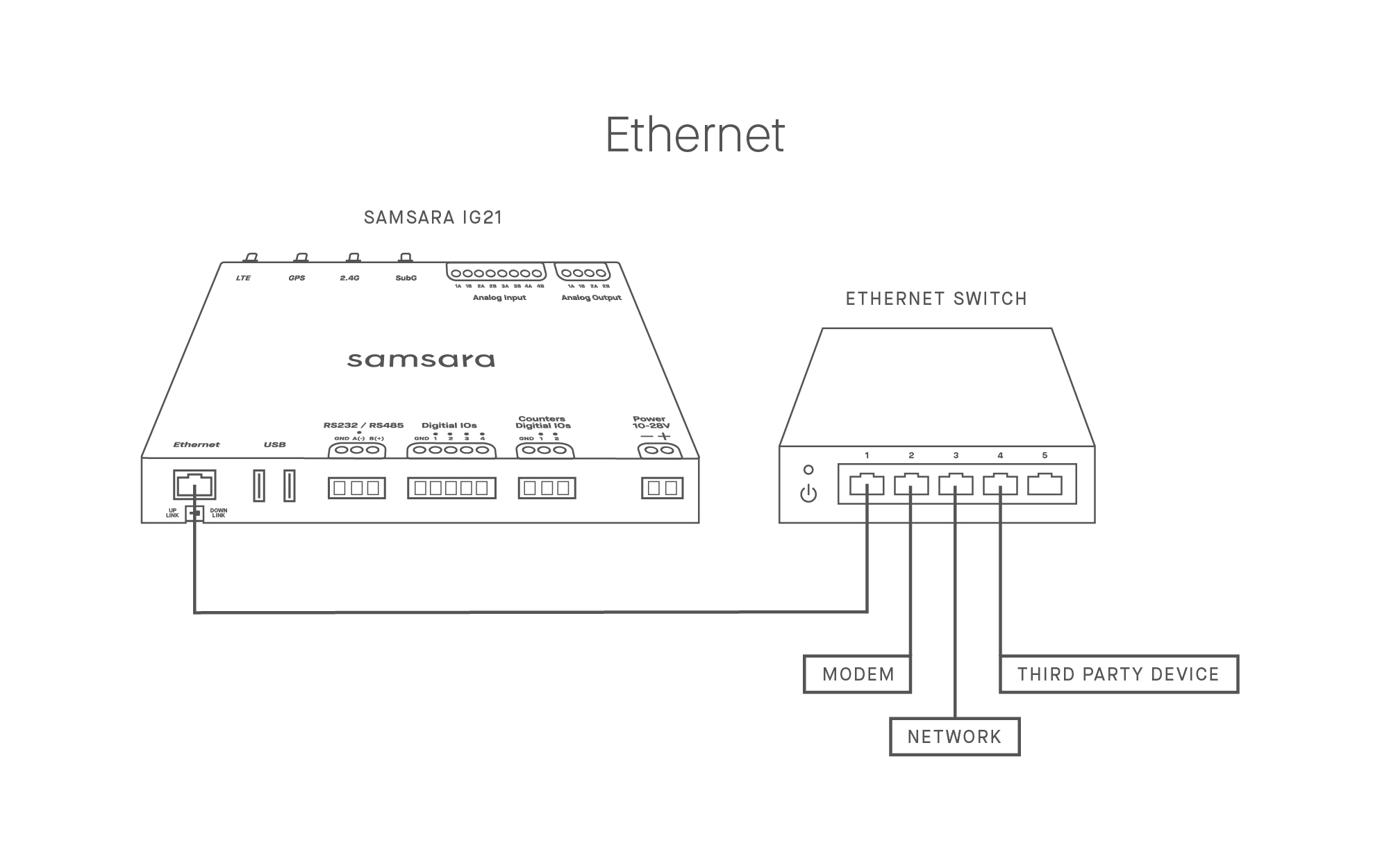

Ethernet/IP Wiring Diagram

EtherNet/IP devices should be connected over Ethernet directly or via an Ethernet switch.

NOTE: - As with other Ethernet connected devices, the IG21 must have a valid IP address for the connected network. Connectivity from the IG21 to the EtherNet/IP device can be checked with the ‘Ping’ tool - see this article for more information: Troubleshoot Third Party Devices

OPC UA

IG21 supports reading data from an OPC UA protocol server.

Currently IG21 cannot serve data via OPC UA.

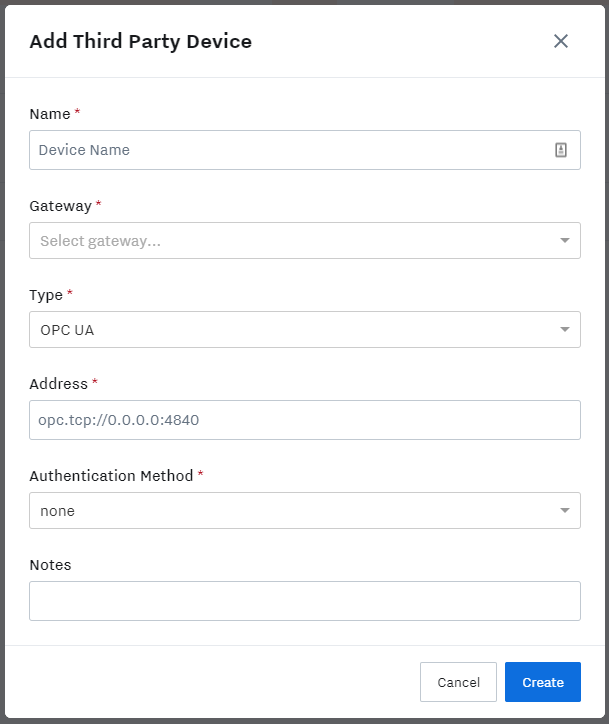

OPC server IP address and port information must be provided.

NOTE: At this time OPC servers requiring authentication are not supported.

CAN Bus

Support for reading J1939 SPN and DTC data from CAN Bus is available on IG21 via an adapter cable. CAN support is built in to IG15 and IG41. See the CAN Bus documentation for more information: Set up CAN Bus in the Cloud

MQTT

Support for subscribing and publishing to MQTT Topics via an MQTT broker is coming soon.
