Summary

In this article, we will go through how to set up a control program on the IG21. Before you go through this article, please:

  1. Purchase the recommended book and go through the instructions:

    1. PLC Controls with Structured Text (ST): IEC 61131-3 by Tom Mejer

  2. Learn more about Structured Text here

Control not currently supported on the IG41.

Structure Text Overview

The IG is a fully functional, cloud-managed PLC that allows users to develop programs using industry standard IEC 61131-3 language. Programs are developed on a central dashboard, and run locally on the device. This allows flexibility in remote management and program auditing, while ensuring that all control functionally happens locally onsite without dependencies on external connectivity.

Structured Text is an IEC 61131-3 language for programmable logic controllers. It provides high level, textual programming that is easy and simple to use and deploy.

Pre-Reading on Structured Text

Instructions below after you purchase PLC Controls with Structured Text (ST): IEC 61131-3 by Tom Mejer:

  • Data Types - Page 14 and 15 of the book by Tom Mejer Antonsen

  • Data Type Conversion - Page 50 of the book by Tom Mejer Antonsen

  •  IF/Else Statements - Pages 53-57 of the book by Tom Mejer Antonsen

  • Timers = Pages 90-91 of the book by Tom Mejer Antonsen

How and where to access PLC programs on the IG

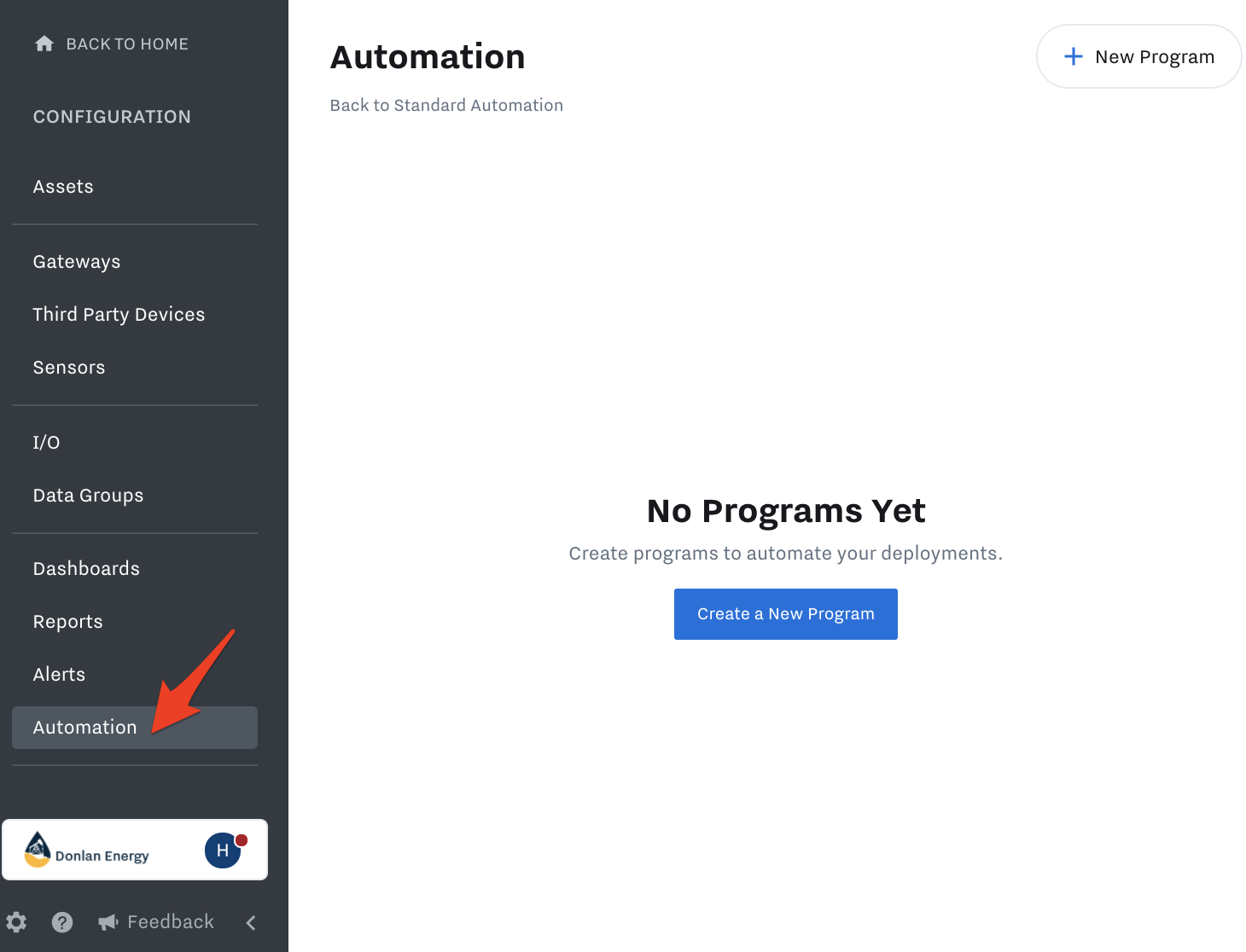

When in the Industrial section, select Automation. On this page, the programs and gateways with programs can be viewed and drilled into. This is also where new programs are created.

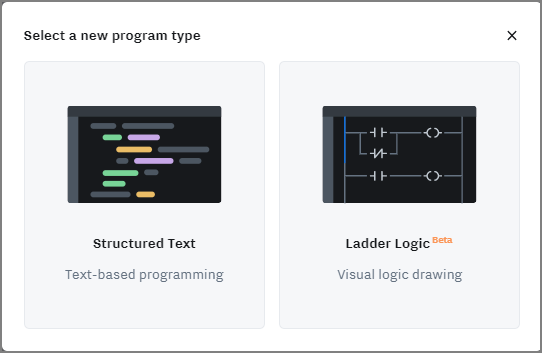

When creating a new program, select either Ladder Logic or Structured text:

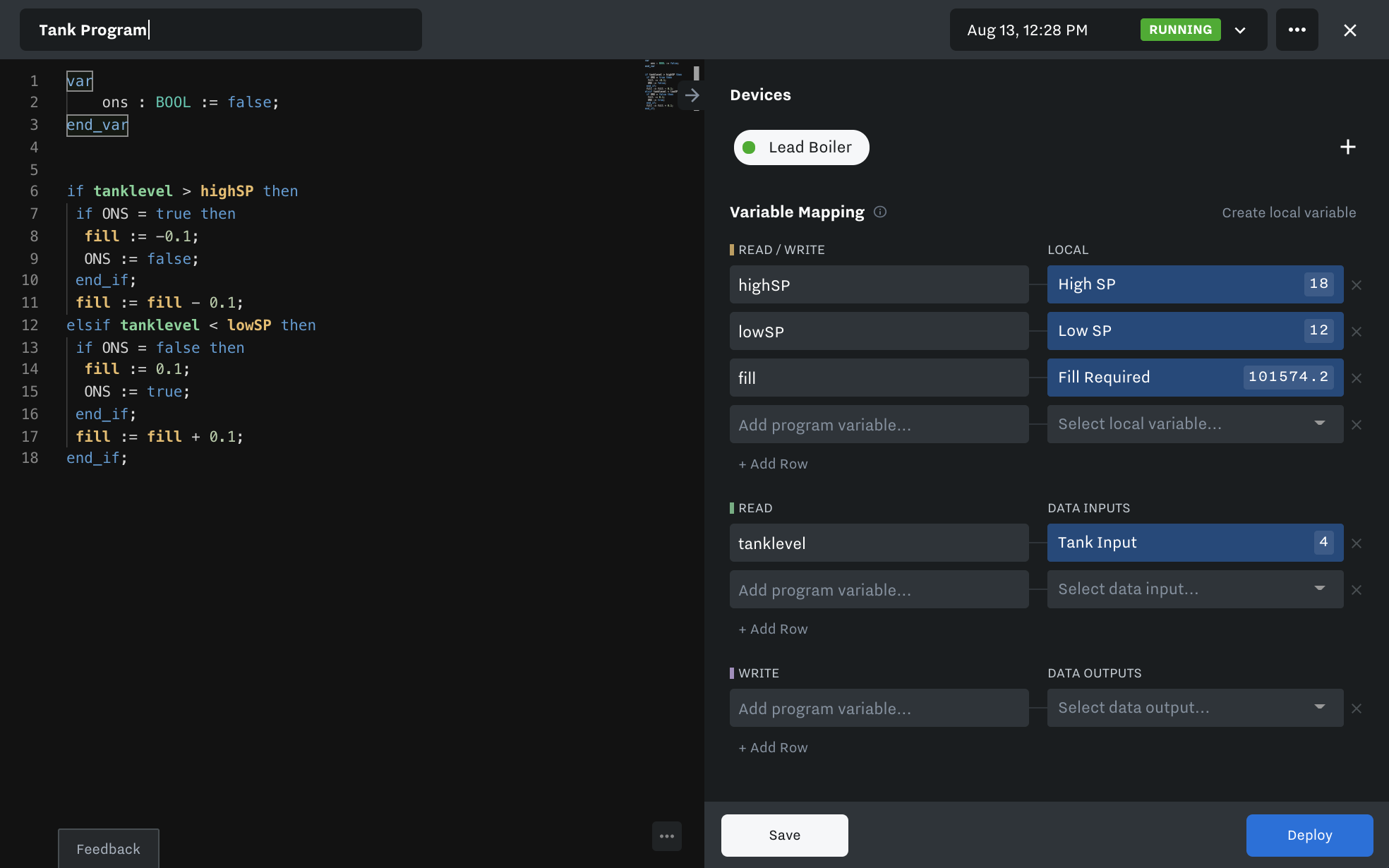

This page allows you to write programs in Structured Text, view past revisions, and compile and deploy code. Samsara Structured Text Development Environment:

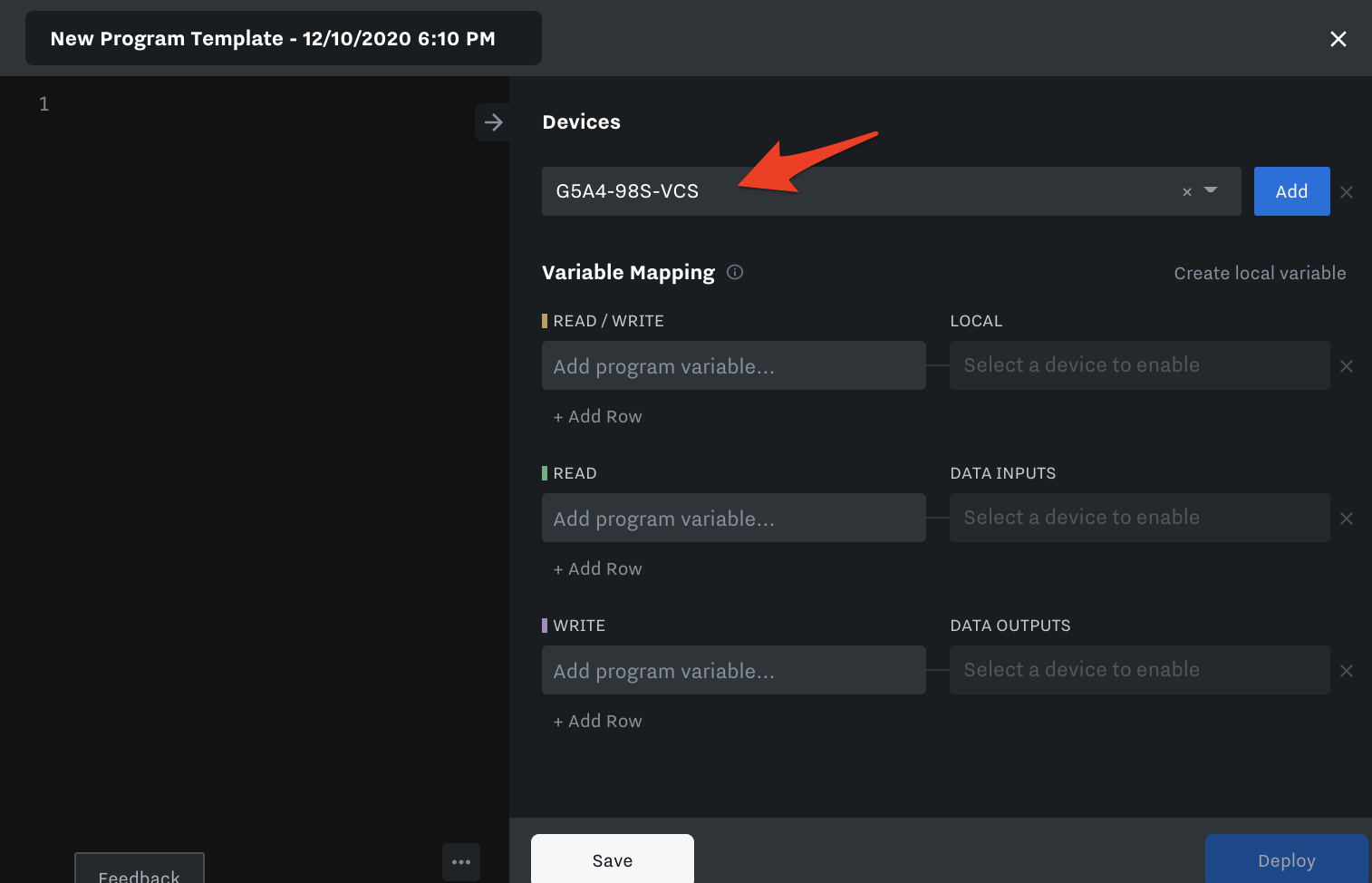

The development environment includes the program list in the left pane, text editor in the right pane and controls in the upper right. To save code, press the Save button in the upper right hand corner. The program will be saved for future use in the programs list. Once the code is compiled, select Deploy to run the program on the IG. For adding variables to the program, see Set up Local Variables and Set up Program Variables

When program is running, it can be stopped or started from the development environment or the program summary page.

Structed Text Example 1:

if fill > 0.0 then
 pump1out := 1.0; pump2out := 1.0;
elsif fill < 0.0 then
 pump1out := 0.0;
 pump2out := 0.0;
end_if;
CODE

Structured Text Example 2:

var
    ons : BOOL := false;
end_var


if tanklevel > highSP then
 if ONS = true then
  fill := -0.1;
  ONS := false;
 end_if;
 fill := fill - 0.1;
elsif tanklevel < lowSP then
 if ONS = false then
  fill := 0.1;
  ONS := true;
 end_if;
 fill := fill + 0.1;
end_if;
CODE
